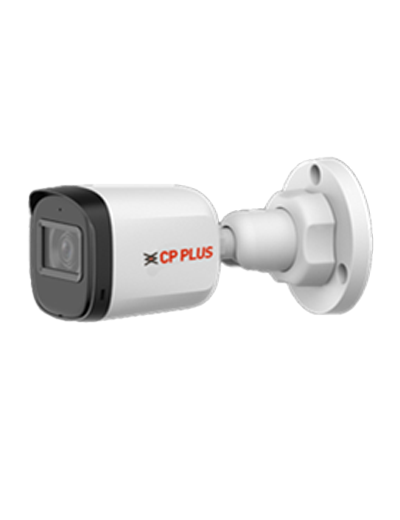

2.4 MP Full HD Bullet Camera 3.6mm Lens 30Mtr IR IP67 CP-URC-TC24PL3 2.4MP IR Bullet Camera – 30Mtr. 2.4MP PS CMOS Image Sensor Max. 2.4MP (1920 x 1080)@25/30fps DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC 3.6mm Fixed lens (2.8mm and 6mm optional) IR Range of 30 Mtrs., IP67 OSD Menu, control over coaxial cable, 2D-DNR CVI/CVBS/AHD/TVI switchable

Description

Image Sensor 2.4MP PS CMOS Image Sensor
Max. Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on
Shutter Speed PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s
Lens 3.6mm (2.8mm and 6mm optional)
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens Type Fixed-focal
Lens Mount M12
Max. Aperture F2.0
Angle of View 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°,
Close Focus Distance 3.6 mm: 0.8 m; 2.8 mm: 0.5 m; 6 mm: 2.4 m
DORI Distance 3.6mm– 55.0m (Detect), 22.0m (Observe), 11.0m (Recognize), 5.5m (Identify) 2.8mm– 44.7m (Detect), 17.9m (Observe), 8.9m (Recognize), 4.5m (Identify) 6mm– 102.9m (Detect), 41.1m (Observe), 20.6m (Recognize), 10.3 (Identify)
Back Light Compensation BLC/DWDR
Iris Control Fixed
White Balance Auto
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Noise Reduction 2D DN
Gain Control (AGC) Auto
Day/Night Auto(ICR)/Color/B/W
Resolution 1080p (1920 × 1080), 960H (960 × 576/960 × 480)
Frame Rate CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
IR Mode Smart IR
IR IR Range of 30 Mtr.,
IR Control Auto
Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F)
Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity <95% (RH), non-condensing Power Source 12V DC ±30% Power Consumption Max. 2.8 W (12 VDC, IR on) Dimension 146.1 mm × 70.0 mm × 69.8 mm Weight 0.15 Kg.
